Magnetic Double Diaphragm Air Pump , Air Bed 15L/m Air Flowrate Air Driven Pump

Name: Magnetic Double Diaphragm Air Pump Air Bed 15Lm Air Flowrate Air Driven Pump
Brand: Cinh or Neutral
Price: 1 USD

Brand Name : Cinh or Neutral

Model Number : QBF-15

Certification : CE ROHS UL

Place of Origin : China

MOQ : 30pcs

Price : Negotiable

Payment Terms : T/T or L/C,

Supply Ability : 5000pcs each day

Delivery Time : 3 to 35days

Packaging Details : plastic film + white box + carton, one pc of QBF-15 air pump in one plastic film and white box, 30pcs white box in one carton,540pcs or 18cartons is 1cbm15120pcs or 504catons is one 20'GQ

Material : Aluminum

Color : Slive

Voltage : AC12V,AC24V,

name : double diaphragm air pump

Pressure : 30KPA

ApplicatiAon : Air Bed

Contact Now

Magnetic Double Diaphragm Air Pump , Air Bed 15L/m Air Flowrate Air Driven Pump

Quick Detail:

Place of Origin:	Zhejiang China (Mainland)	Brand Name:	Cinh or Blank	Model Number:	QBF-15
Theory:	Electromagnetic Pump	Structure:	Diaphragm Air Pump	Usage:	Air Pump
Power:	Electric	pplicatiAon:	pressing air	Fuel:	Electric
Flowrate	15L/M	Pressure	30KPA
Weight:	0.62kgs	Size:	106x76x74mm

Specifications:

ITEM	SPECIFICATION
Air Output:	30SCFH(15Lpm)
Pump Pressure:	4.5PSI(30kpa)
Power Requirement:	AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz
Power Consumption:	10W
Pump Design:	Double diaphragm, duckbill valves
Pump Body:	Aluminium
Outlet & Inlet Dia:	0.3"(7.6mm)
Net Weight:	0.62kgs
Dimension(LxWxH):	4.2"x3"x2.9"(106x76x74mm)
Electrical Connections:	1-ft(300mm)Insulated wire pair
Noise Level:	40db unconnected, connected operation will reduce db level

Applications:

fragrance diffuser

air bed

Atmospheric Detection

Dosing chemical material

air cloth

medical applications

industrial applications

balloon

medical

humidifier

blood pressure

gas monitor

dosing

cooling system

ink

water heater

boiler

boat

gas boiler

breast

fridge

pillow and mattress

ozone generator

aquarium

recovery system

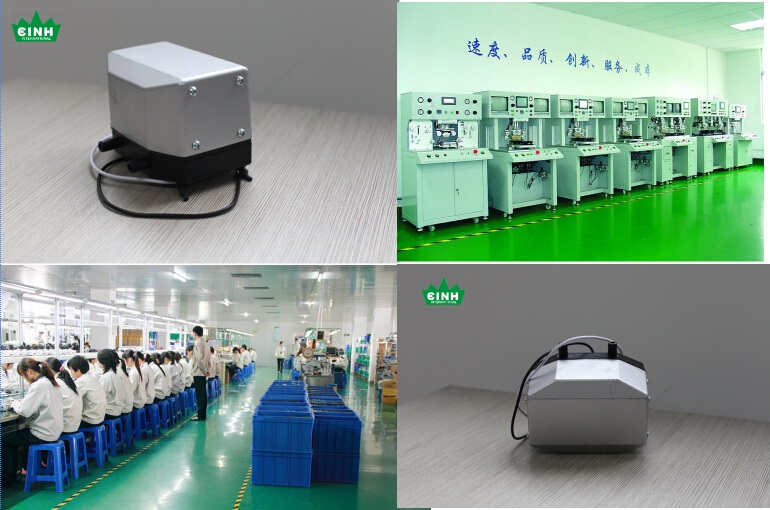

PRODUCT SHOW

Magnetic Double Diaphragm Air Pump , Air Bed 15L/m Air Flowrate Air Driven Pump

Product Tags:

air diaphragm pumps

double diaphragm air pump

30KPA air driven pump
